Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder

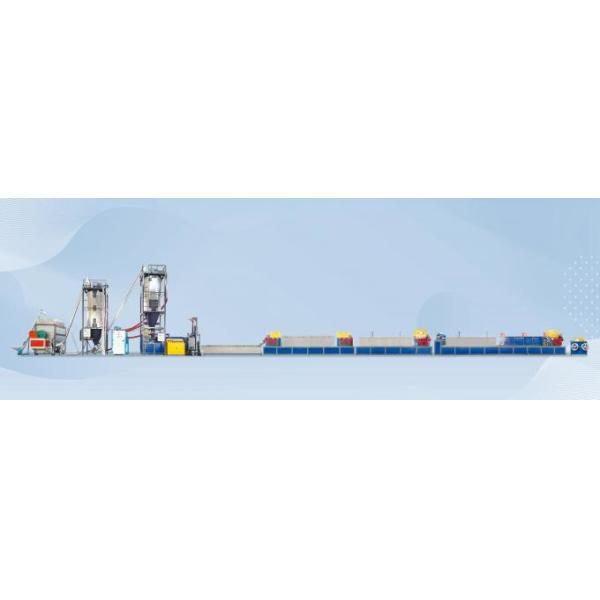

PET Packing Strap Production Line Description
This machine is main used to make pet strap ,pet packing strap .
Adopt the plc control the whole line do the auotmatic production
it use the melting pump and pressure sensor ensure the production stable and strap quality control
The raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.
PET Output 3 Strap Production Line Configuration Reference
| Item | Name | Quantity |
| 1 | Dehumidification and drying system | 1 set |
| 2 | Oil and dust filter | 1 set |
| 3 | Horizontal mixer(5000L) | 1 set |
| 4 | Pre-drying tower(5000L) | 1 set |
| 5 | Screw Feeder | 3 set |
| 6 | Barrel(5000L) | 1 set |
| 7 | ¢100mm Extruding Machine | 1 set |
| 8 | Melt pump | 1 set |
| 9 | Single cylinder filter | 1 set |
| 10 | PET Mould output 2straps | 1 set |
| 11 | Cooling water tank | 1 set |
| 12 | Stretching oven | 1 set |
| 13 | Five roller gearbox | 3 set |
| 14 | PLC electrical control system | 1 set |
| 15 | Forming oven | 1 set |
| 16 | Double disk winder | 3 set |
PET packaging belt production line Process Flow
① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)
PET packaging belt production line Application & Features
- High tenslie strength,small percentage elongation, resistance to impact, not easy to be broken,cheap,good softness, connveninet operation,safe and reliable.
- In the world,it is ideal substitute of steel belt.
- It is widely used in papermaking,wooden products textile cotton and fibre,color metal, cannedproducts , chemical, metallurgy, powercable, aluminium.Plastic shaped materials and other products and various kinds of trays.
- The usage of the product is convenient.It can adopt common steel fastening for connection.
- It also is suitable for various kinds of hand-operated of table packing machine and large auto packing machine of enterprises
- It adopts hot-melting connection.

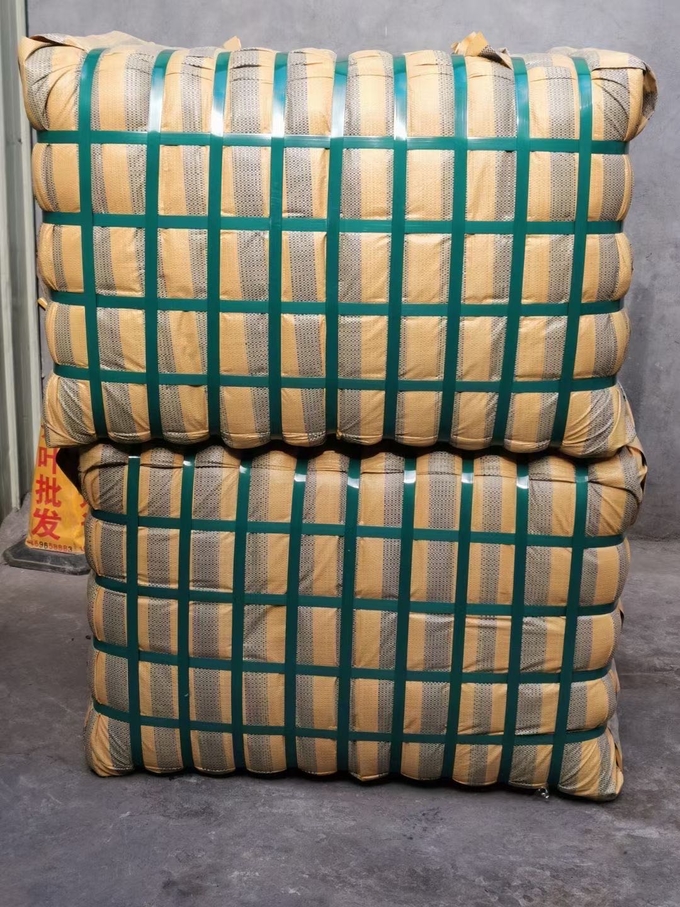

PET strapping finished products
As you can see that the PET strapping can be available in different colors with different patterns, or can be printed with your company logo or any logo you want to display according to your requirements, the different colors depend on the color masterbatch you use. And we are using constant force winding system with unique design parameters in our machine, which meets high output, excellent winding effect and flat and beautiful on both sides.
|
|
420-600kgs/H PET Strap Making Machine with INVT Inverter Images
|
